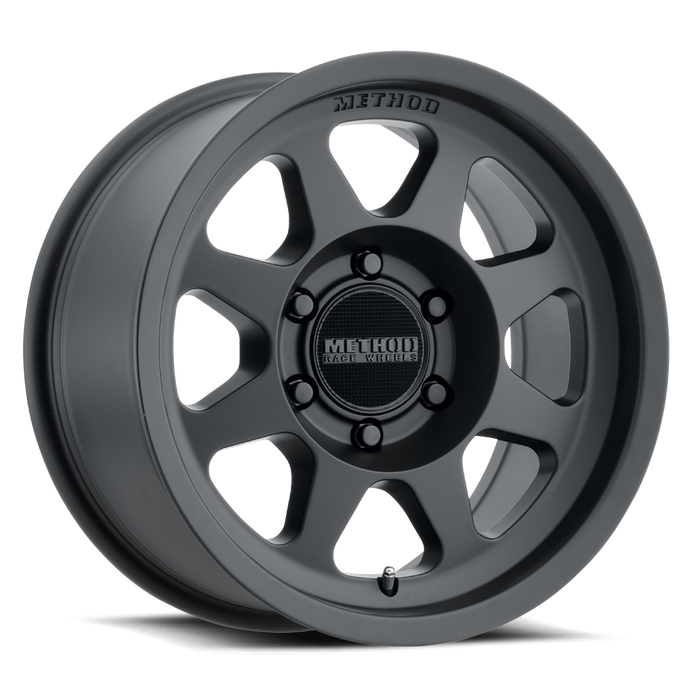

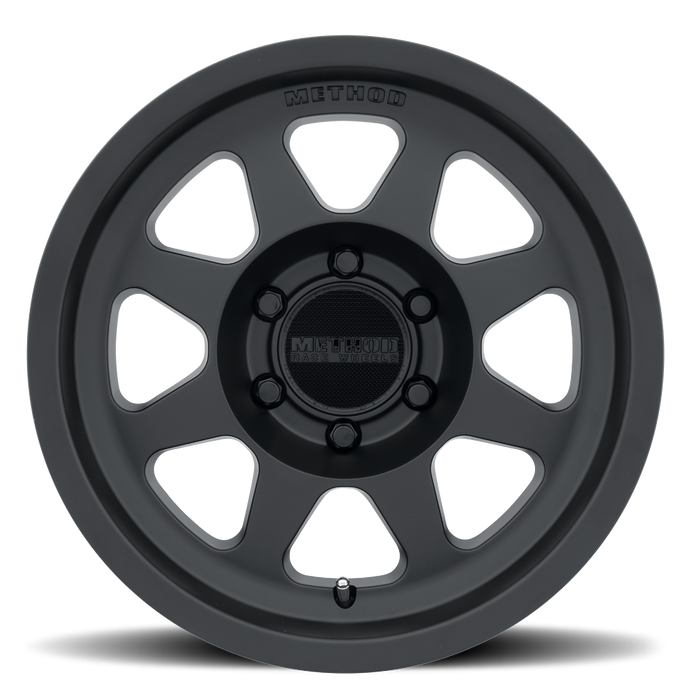

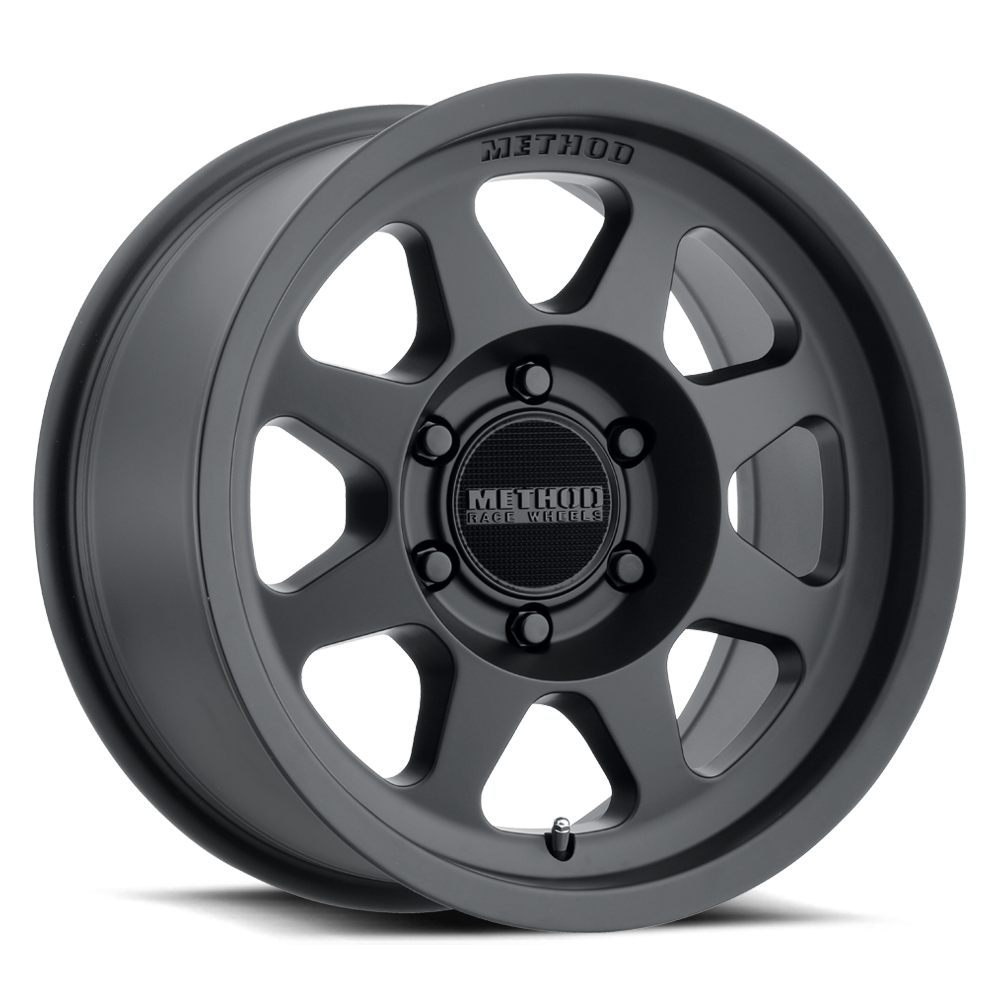

Method MR701 Bead Grip Wheel – Matte Black
Availability: In stock
Tax Info: Tax included.
Sku: MR70177512530
The 701 Bead Grip® wheel was designed to be the perfect wheel for overland enthusiasts. The Bead Grip® technology allows deflation of tyres down to pressures that previously would have required beadlock wheels to make sure tyres didn’t debead.
It’s advantageous to reduce tyre inflation pressure while off-roading to increase a tyre’s contact patch surface area for better traction on loose surfaces as well as improve ride comfort by effectively reducing the spring rate of the tyre. The valve was strategically placed for extra protection in harsh riding environments.
The 701 lineup also offers popular van fitments.

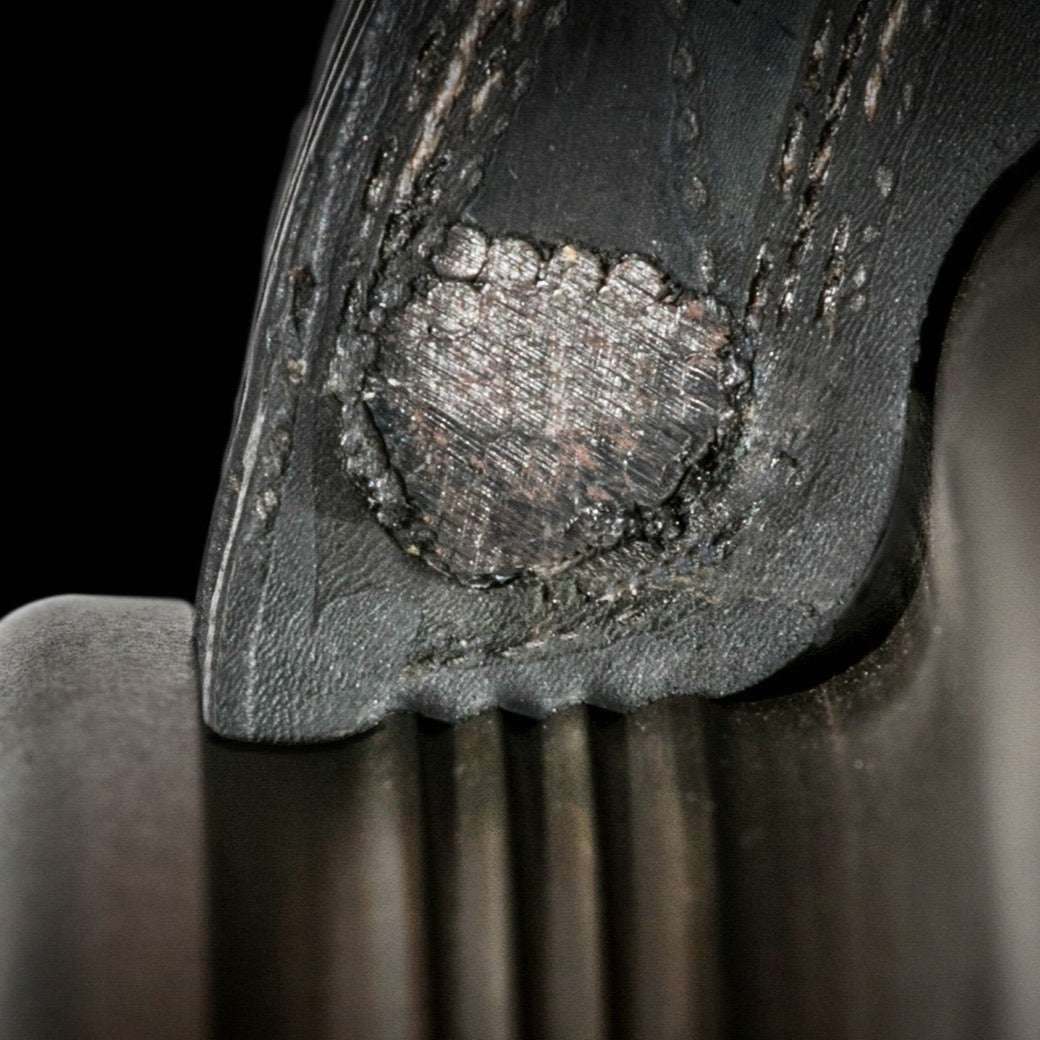

- Patented Bead Grip Technology ® engages tyre bead for increased grip at low tyre pressures
- Solid A356 aluminium with T6 heat treatment construction

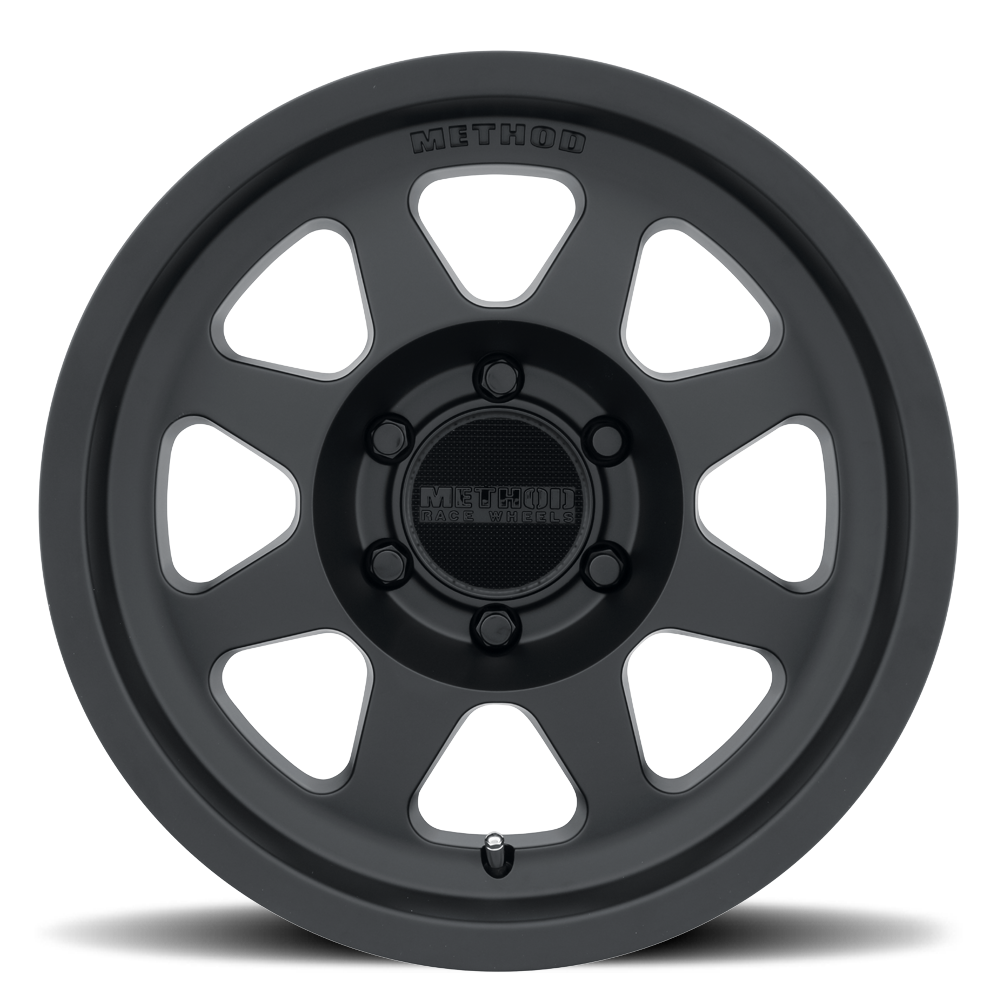

- Classic 8 window design with debossed METHOD logo on face
- Aggressive safety hump on bead seats further prevents debeading
- Reinforced inner lip taken from MRW race wheel increases strength
- Snap-in centre cap with embossed METHOD Bead Grip® logo

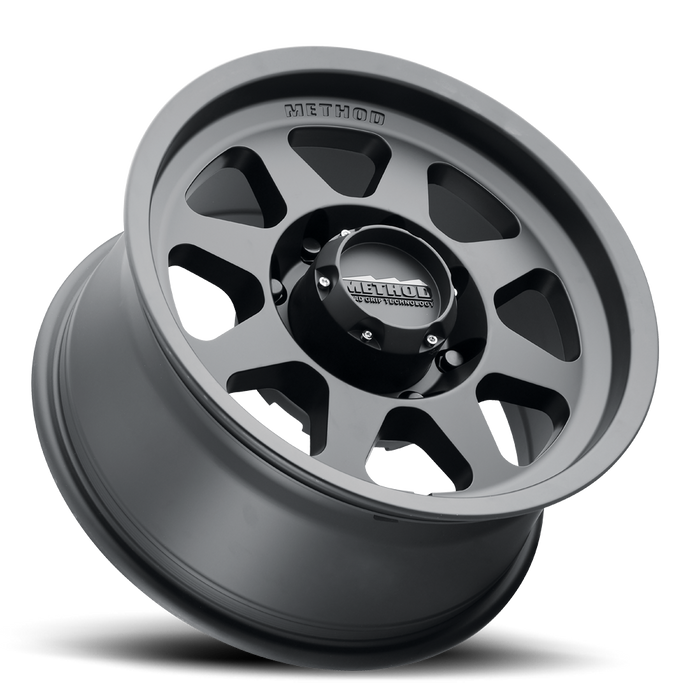

- Push-through centre cap with embossed METHOD Bead Grip® logo for 8 lug applications
- Hub centric fitments for common applications
- Industry’s best lifetime structural warranty
- Super strong 1202 kg and 1651 kg load ratings
Sizes & specifications
| Size | Stud pattern | Offset | Centre bore | Load rating | Part no. |
|---|---|---|---|---|---|
| 16x8 | 5x120 | 0mm | 72.6mm | 1202kg | MR70168052500 |
| 16x8 | 6x139.7 | 0mm | 106.25mm | 1202kg | MR70168060500 |
| 17x7.5 | 5x114.3 | +30mm | 73mm | 1202kg | MR70177512530 |
| 17x7.5 | 5x160 | +50mm | 65mm | 1651kg | MR70177556550 |
| 17x7.5 | 6x130 | +50mm | 84.1mm | 1651kg | MR70177563550 |
| 17x8.5 | 5x127 | 0mm | 71.5mm | 1202kg | MR70178550500 |
| 17x8.5 | 5x150 | 0mm | 110.5mm | 1202kg | MR70178558500 |
| 17x8.5 | 6x135 | 0mm | 87mm | 1202kg | MR70178516500 |
| 17x8.5 | 6x139.7 | 0mm | 106.25mm | 1202kg | MR70178560500 |
| 17x8.5 | 8x165.1 | 0mm | 130.81mm | 1651kg | MR70178580500 |
| 17x8.5 | 8x170 | 0mm | 130.81mm | 1651kg | MR70178587500 |
| 17x9 | 5x139.7 | -12mm | 108mm | 1202kg | MR70179055512N |
| 17x9 | 6x139.7 | -12mm | 106.25mm | 1202kg | MR70179060512N |
| 18x9 | 5x150 | +25mm | 110.5mm | – | MR70189058525 |
| 18x9 | 6x139.7 | +18mm | 106.25mm | 1202kg | MR70189060518 |
| 18x9 | 8x165.1 | +18mm | 130.81mm | 2041kg | MR70189080518H |
| 18x9 | 8x170 | +18mm | 131mm | 2041kg | MR70189087518H |
Suits
BYD Shark 6, Chevrolet Silverado 1500, Chevrolet Silverado 1500 ZR2, Ford Everest Next Gen, Ford Everest UA, Ford F-150, Ford F-250, Ford F-350, Ford Ranger Next Gen, Ford Ranger PX, Ford Ranger Raptor Next Gen, Ford Ranger Raptor PX3, Ford Ranger Super Duty, Ford Transit Custom, GMC Sierra 1500, GWM Cannon, GWM Tank 300, Holden Colorado RG, Holden Colorado 7, Holden Trailblazer, Ineos Grenadier, Isuzu D-Max RG, Isuzu D-Max RT, Isuzu MU-X UC, Isuzu MU-X UCS40, Jeep Gladiator JT, Jeep Wrangler JK/JL, Kia Tasman, Mazda BT-50 TF, Mazda BT-50 UP/UR, Mercedes-Benz Sprinter, Mitsubishi Pajero Sport QE, Mitsubishi Triton MQ/MR, Nissan Patrol GQ/GU, Nissan Patrol Y62, Ram 1500 DS (5-stud), Ram 1500 DT (6-stud), Ram 1500 TRX, Ram 2500, Ram 3500, Toyota Fortuner, Toyota HiLux N70, Toyota HiLux N80, Toyota LandCruiser 100 Series, Toyota LandCruiser 105 Series, Toyota LandCruiser 200 Series, Toyota LandCruiser 300 Series, Toyota LandCruiser 70 Series, Toyota LandCruiser 80 Series, Toyota Prado 120 Series, Toyota Prado 150 Series, Toyota Prado 250 Series, Toyota Tundra, Volkswagen Amarok 2nd Gen.
Select your size, stud pattern and offset above, or contact us to confirm the right fitment for your vehicle.
Price is per wheel. Tyres, wheel nuts and fitting not included. Fitment can vary with lifts, big-brake kits and tyre size.
